Epoxy & PU flooring, anti-corrosive coatings, engineered to last.
RR Infra Solutions designs and installs industrial epoxy flooring, polyurethane flooring, ESD anti-static systems, structural anti-corrosion coating, tank linings, and PUF panels for pharmaceutical cleanrooms, automotive plants, warehouses and chemical facilities across India.
- Years field experience
- 15+
- Years field experience
- Technical personnel
- 35+
- Technical personnel
- Deployment capability
- Pan-India
- Deployment capability
- Loss-time injuries / 36 mo
- 0
- Loss-time injuries / 36 mo
1mm–9mm
System thickness range across epoxy & PU concrete floors
Trusted by manufacturing & pharma plants across North India
RACL Geartech Ltd.
Automotive Precision Engineering
Lannett Pharmaceuticals
Pharmaceutical / Healthcare
Jubilant Agri & Consumer
Chemicals / Fertilizers
Hero Motors
Automobile Components
Triveni Engineering
PPG Industrial Coatings
Stoneman Crafts India
Crafts
Core Expertise
Four service verticals, one in-house crew
Delivered with in-house technical personnel, owned equipment, and OEM-grade materials from Berger Paints and Ardex Endura no subcontracted application.

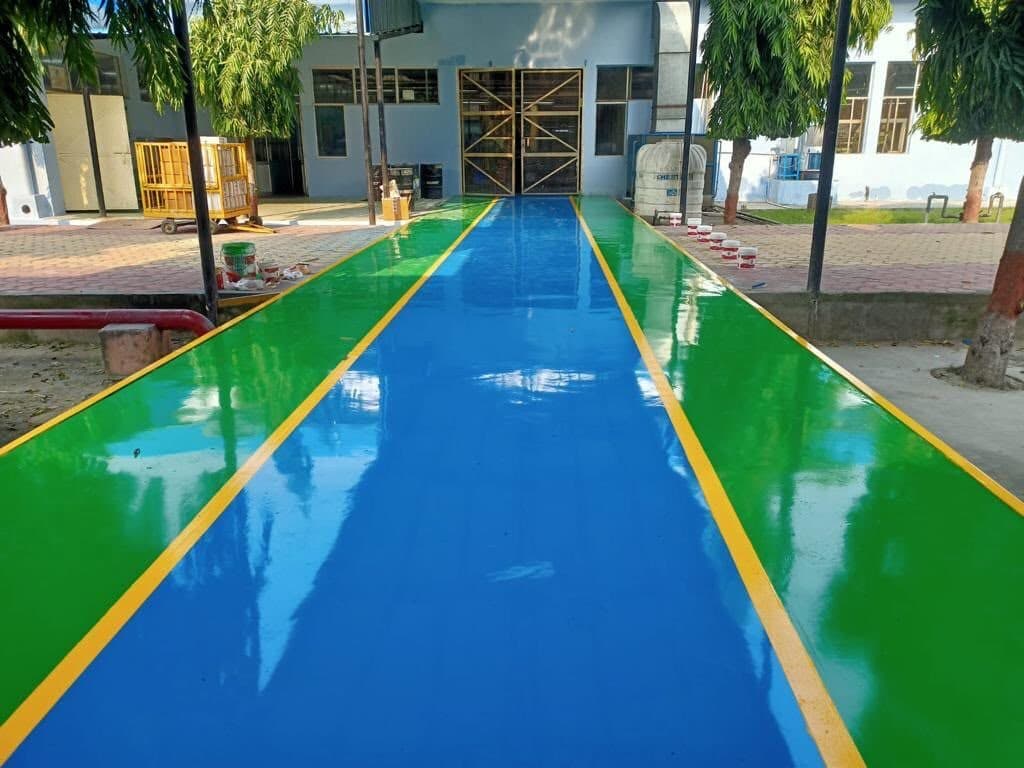

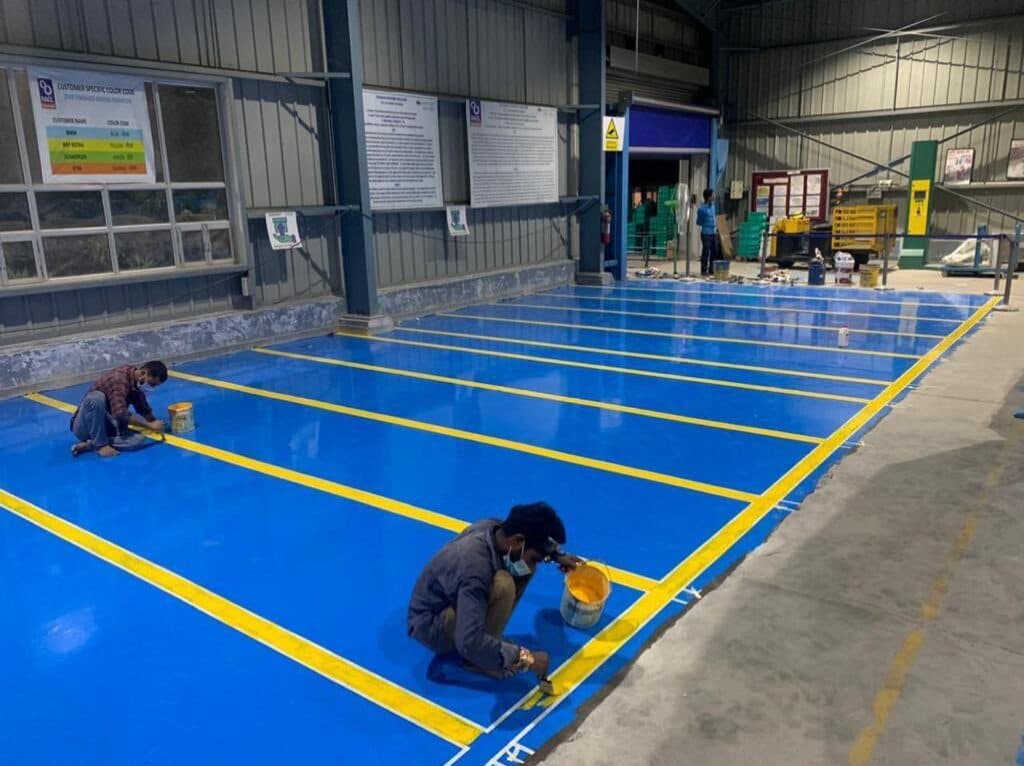

Epoxy & PU Flooring Systems
Self-leveling, heavy-duty screed, polyurethane concrete and anti-static flooring for pharmaceutical, warehouse, food-processing and electronics environments.
- ·1mm–8mm system thickness
- ·−40°C to +120°C range
- ·cGMP & cleanroom compliant
- ·Anti-microbial & ESD variants

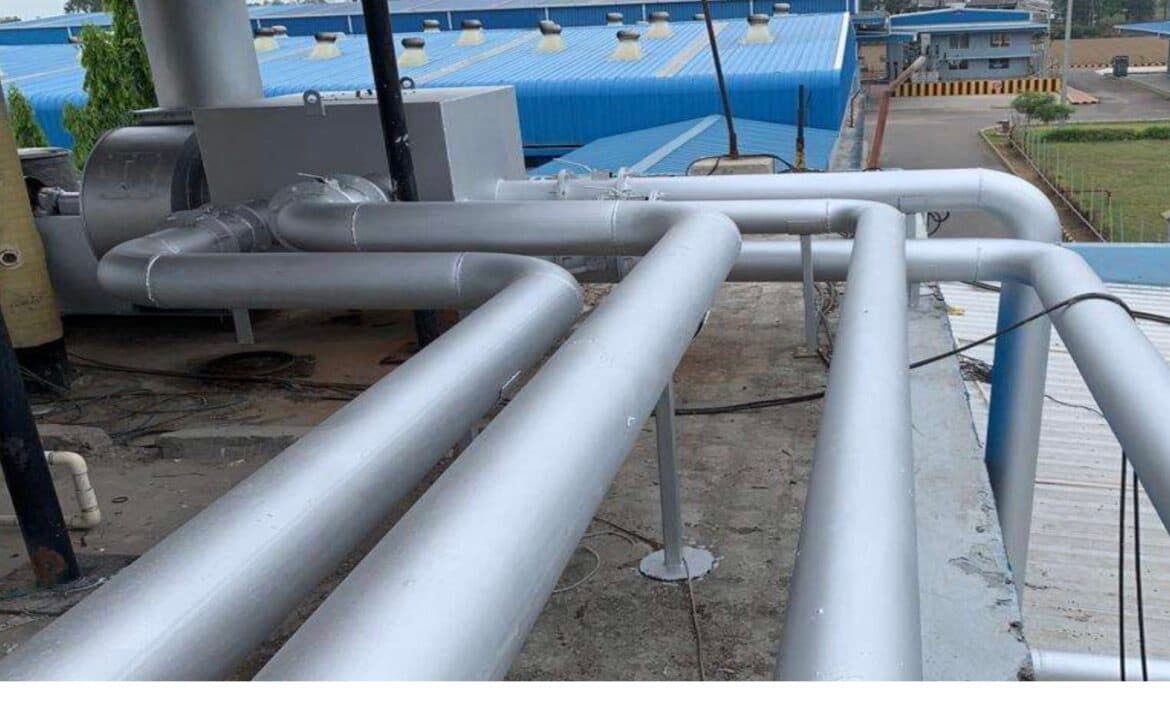

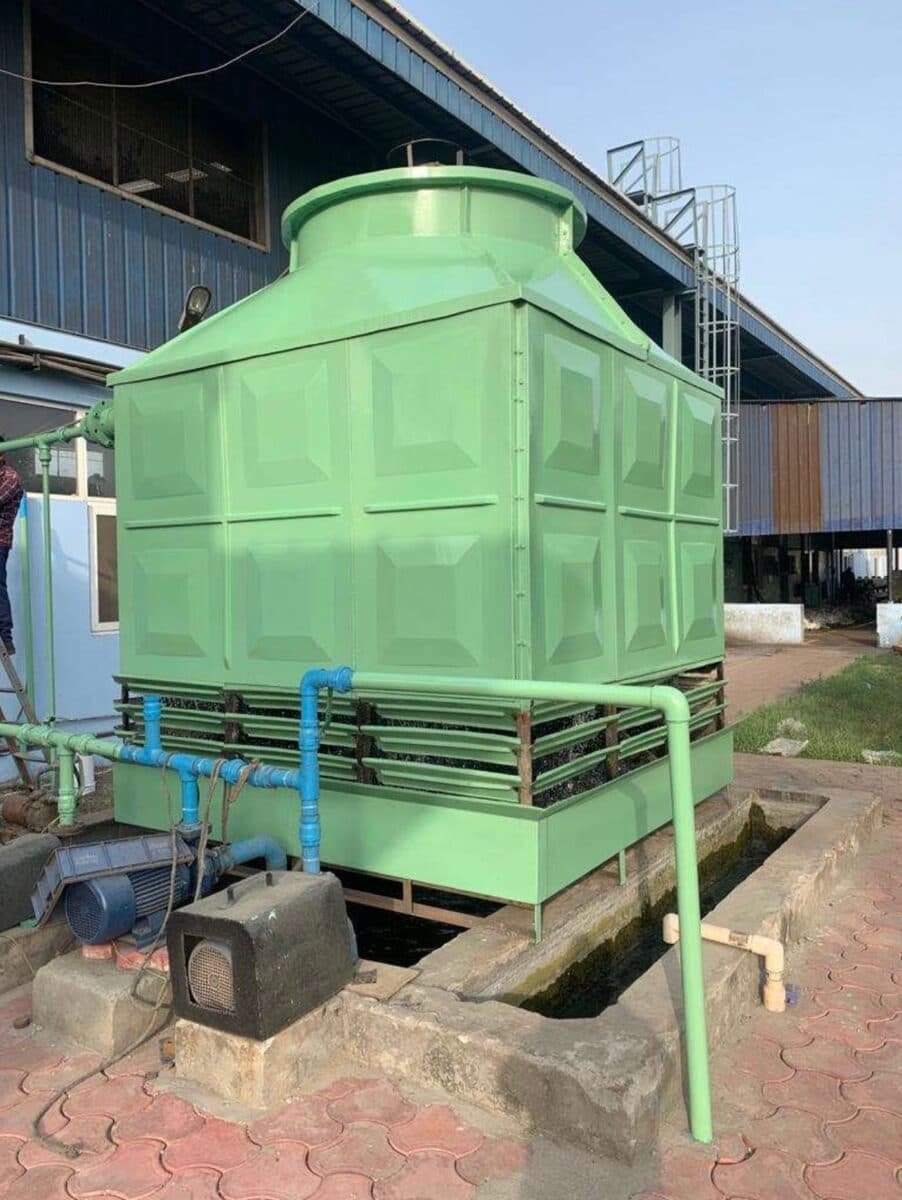

Anti-Corrosive Structural Coatings
High-build epoxy structural paint, UV-stable polyurethane topcoats and acid/alkali resistant tank linings for marine, pipeline and chemical plant applications.
- ·Marine & industrial primer
- ·SSPC / NACE surface prep
- ·Pipeline & exterior UV coat
- ·Tank & dyke lining systems
PUF Panel Installation
Polyurethane foam insulated metal sandwich panel installation for cold-chain logistics, cleanrooms and industrial buildings, plus waterproofing.
- ·Cold storage (−30°C)
- ·Clean room panels
- ·Roof & wall systems
- ·Comprehensive waterproofing
Heavy Machinery & Equipment Rental
Fully owned fleet of construction and surface-preparation equipment available for project rental operated by our own trained crew.
- ·JCB excavators & backhoes
- ·Hydra mobile cranes
- ·Diesel generator sets
- ·Diamond floor grinders
Flooring Systems
Engineered floors for pharma, industrial & hazardous environments
Every epoxy flooring and PU flooring system includes substrate preparation to SSPC-SP standards before application, rated for continuous service from −40°C to +120°C.

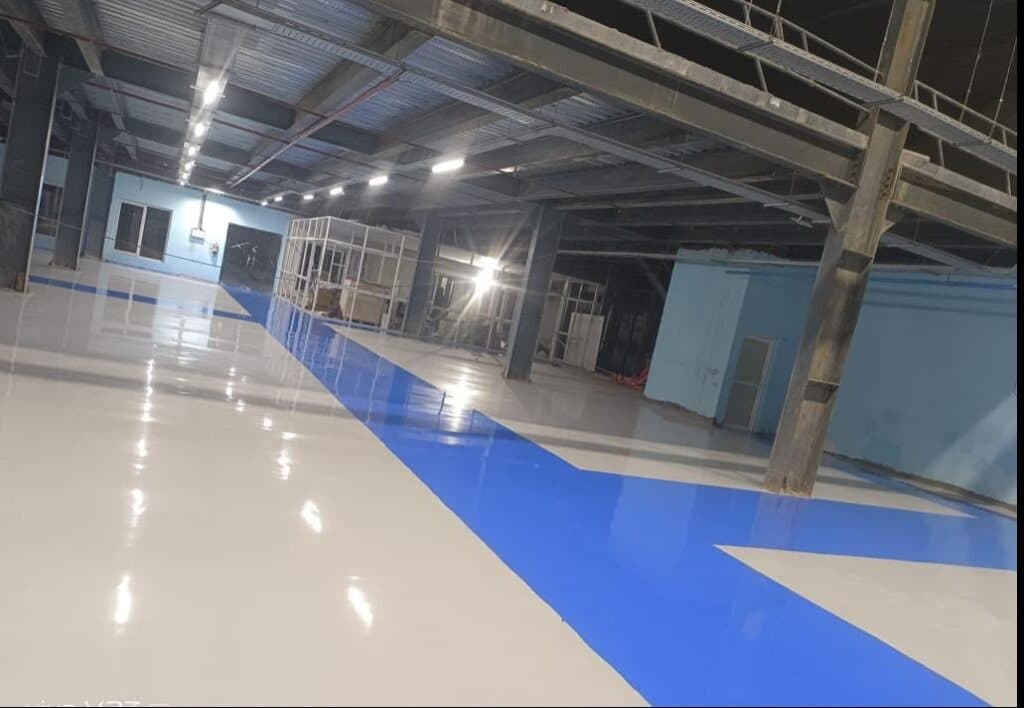

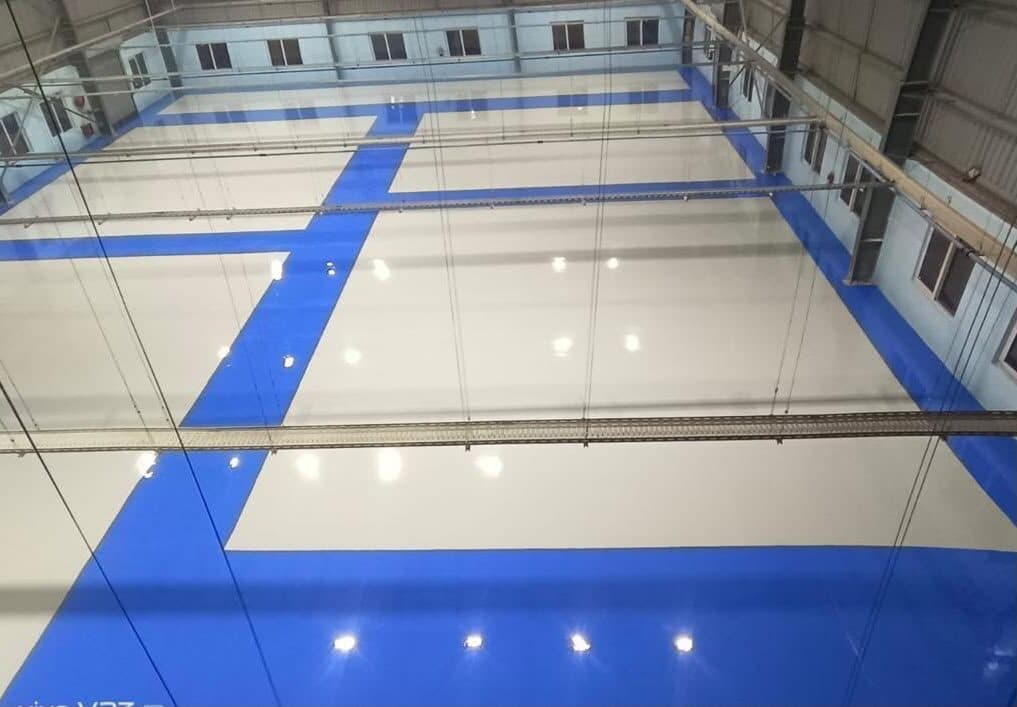

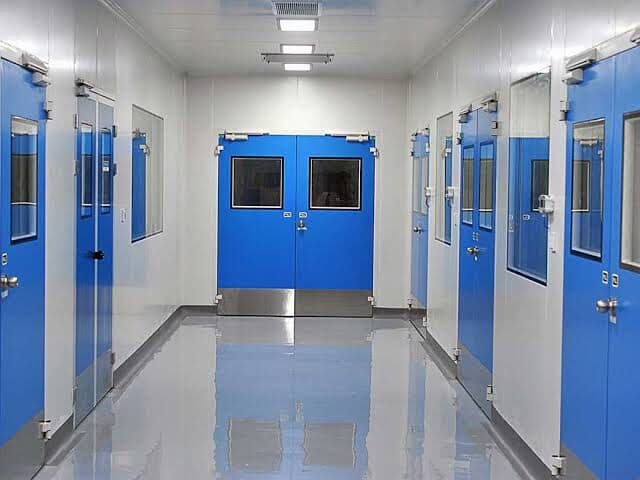

Self-Leveling Epoxy Flooring
1mm – 4mm- · Pharmaceutical cleanrooms
- · Hygienic process areas
- · Research laboratories
- · Electronics assembly
Heavy-Duty Epoxy Screed
4mm – 8mm- · Warehouses & logistics
- · Automotive shop floors
- · Heavy machinery bays
- · Loading docks
Polyurethane Concrete / Screed
4mm – 9mm- · Food processing plants
- · Beverage production
- · Cold storage facilities
- · Freezer rooms
Anti-Static Epoxy Flooring
2mm – 4mm- · Electronics manufacturing
- · PCB assembly areas
- · Hazardous chemical storage
- · Server rooms
System Build-Up
ESD & anti-static flooring, layer by layer
Anti-static and ESD flooring is engineered to control electrostatic discharge to safe levels protecting sensitive electronics, preventing ignition of flammable vapours, and meeting regulatory compliance for classified manufacturing zones.
- Electrical Resistance
- 10⁵ – 10⁹ Ω (dissipative)
- ESD Standard
- IEC 61340-5-1 / ANSI S20.20
- Charge Generation
- < 100V (human body)
- Surface Resistivity
- 1 MΩ – 1 GΩ
Substrate
Existing concrete / structural slab
Primer Layer
Low-viscosity penetrating epoxy primer
Conductive Base Coat
Carbon-loaded epoxy body coat
Grounding Copper Tape
Embedded copper earth grid
ESD Top Coat
Dissipative polyurethane seal coat
Grounding verified with Megger testing post-installation, per IEC 61340 requirements.
Coatings & PUF Panels
Anti-corrosive coating and insulated panel systems
SSPC / NACE / ISO 8501 compliant surface preparation, applied by Berger Paints & Asian Paints certified applicators.
6.1

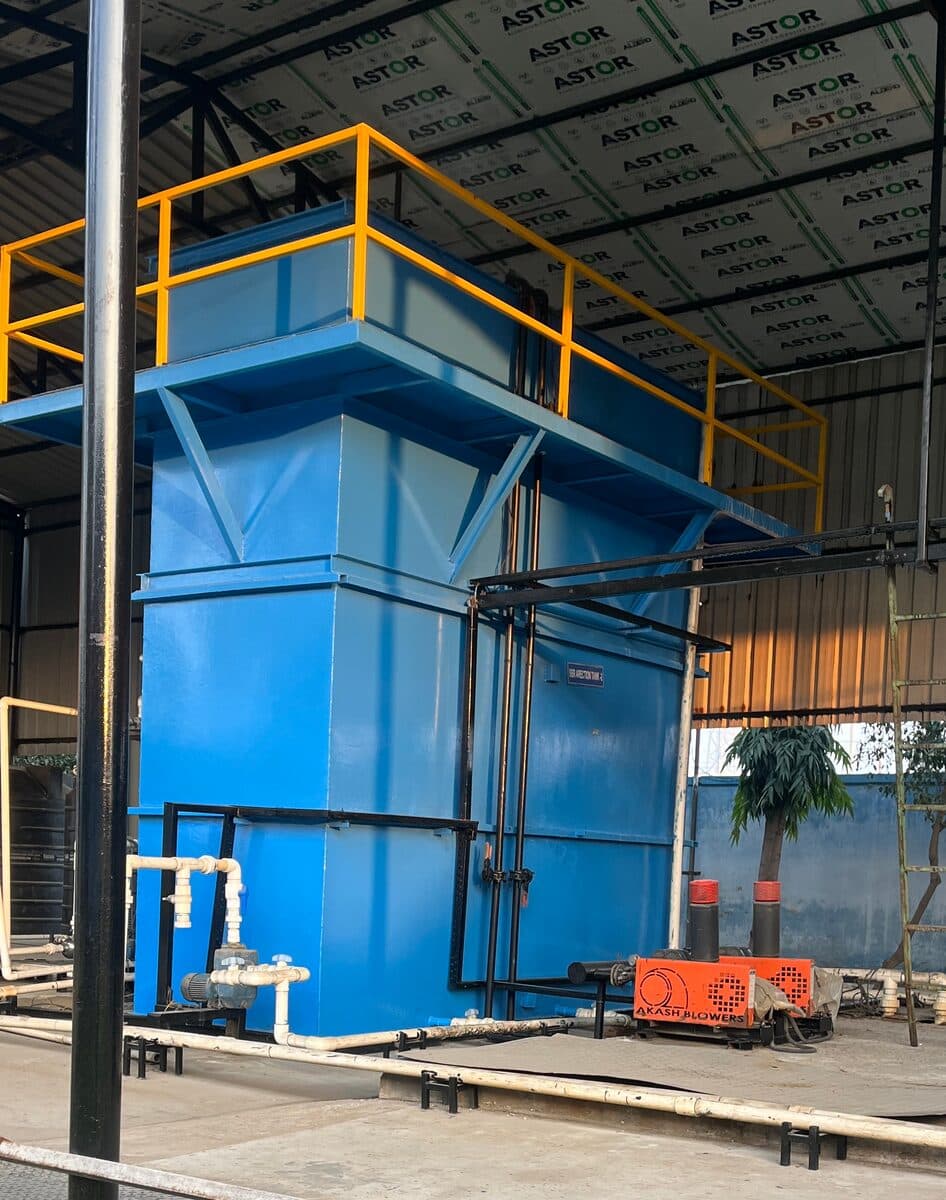

High-Build Epoxy Structural Paint
Two-component high-build epoxy coating applied over blasted substrate (Sa 2.5 / SSPC-SP10) for structural steel, storage tanks, pipework and marine structures.
DFT (Primer): 75–100µm
DFT (Finish): 100–150µm
Surface Prep: Sa 2.5 / SSPC-SP10
6.2
Polyurethane Protective Topcoats
Aliphatic polyurethane finish coats for long-term UV stability, colour retention and chemical splash resistance over epoxy primers.
UV Resistance: Excellent (aliphatic)
Gloss Retention: >80% / 2000h QUVB
Temp Resistance: Up to 120°C
6.3

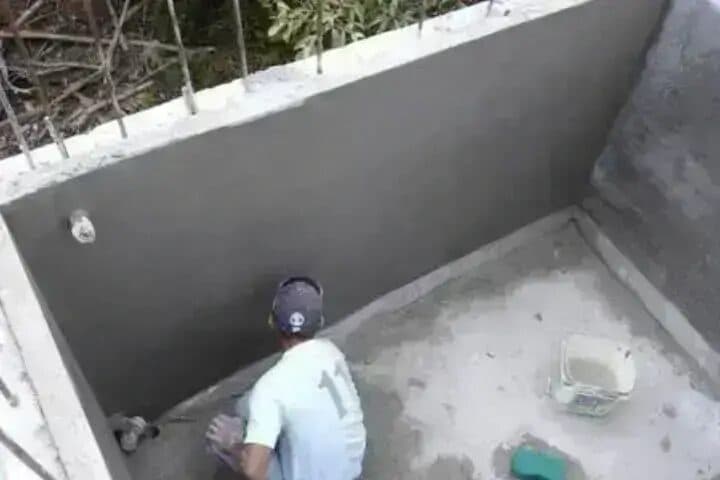

Acid / Alkali Resistant Tank Linings
Specialist novolac epoxy and vinyl ester lining systems for tanks, reaction vessels, bund walls and containment dykes.
Lining System: Novolac epoxy / VE
Chemical Range: pH 1–14
Holiday Testing: Spark test @ 5kV/mil
PUF Panel Installation
Polyurethane foam insulated metal sandwich panels
Cold Storage
Freezer rooms to −30°C, chiller rooms, blast freezers
Pharmaceutical
cGMP clean rooms, temperature-controlled warehouses
Food Processing
Hygienic wall/ceiling panels, HACCP-compliant finishes
Industrial Buildings
Factory roofing & side cladding for warehouses
- Core Density
- 38–42 kg/m³
- Panel Thickness
- 40mm – 200mm
- Facing
- Pre-painted GI / colour steel
- Flame Spread
- Class 1 (BS 476 Part 7)
Complementary liquid-applied waterproofing membranes for roofs, basements and water-retaining structures polyurethane-based, cementitious, or crystalline depending on substrate.
Why RR Infra Solutions
OEM-certified applicators, zero-compromise safety
Berger Paints India Limited
Certified Authorized Applicator & Dealer
- · Protective structural coatings
- · Industrial paint systems
- · Marine grade coatings
Ardex Endura, India
Approved Technical Applicator
- · Self-levelling underlayments
- · Concrete repair mortars
- · Surface smoothing systems
0
Loss-time injuries
Recorded in the past 36 consecutive months
Statutory Compliance
Health, Safety & Environment
- 100%
- PPE compliance, all personnel & sites
- 100%
- JSA coverage, every shift
- Compliant
- VOC / hazmat waste disposal
- On-site
- Trained first aiders at every project
Project Portfolio
Proven delivery, across North India
Completed epoxy flooring, PU flooring and anti-corrosive coating projects for automotive, pharmaceutical, chemical and industrial clients.
Get In Touch
Request a site visit & free quotation
Tell us about your facility epoxy flooring, PU flooring, anti-corrosive coating, PUF panels or machinery rental and our technical team will get back with a scope and quote.
- ✓Certified OEM applicator for Berger Paints & Ardex Endura
- ✓On-site QA with magnetic/ultrasonic DFT gauges
- ✓SSPC/NACE surface preparation standards
- ✓PO-based commercial engagement; milestone & running bills
AddressGajraula, District Amroha, Uttar Pradesh – 244235, India
Phone+91 789 519 2980 · +91 975 918 8088
